SPECIFICATIONS
Part No 149BARLP2

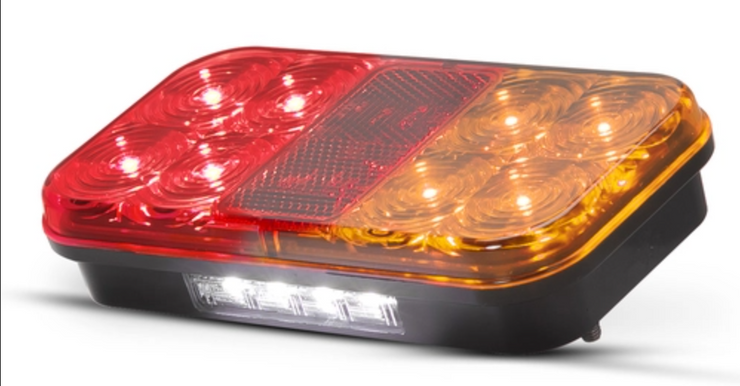

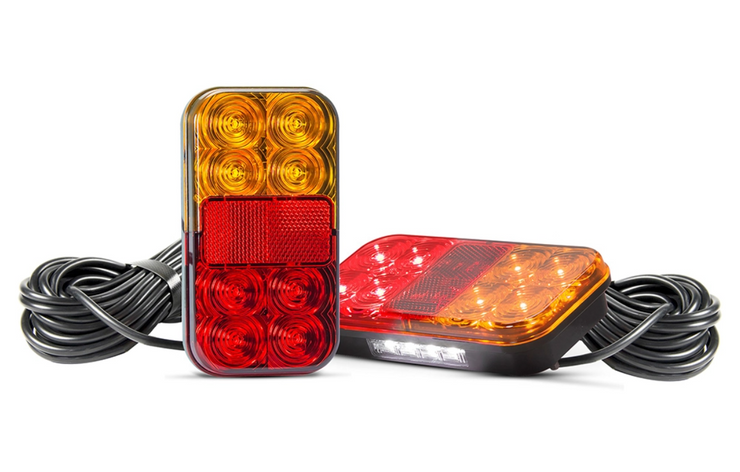

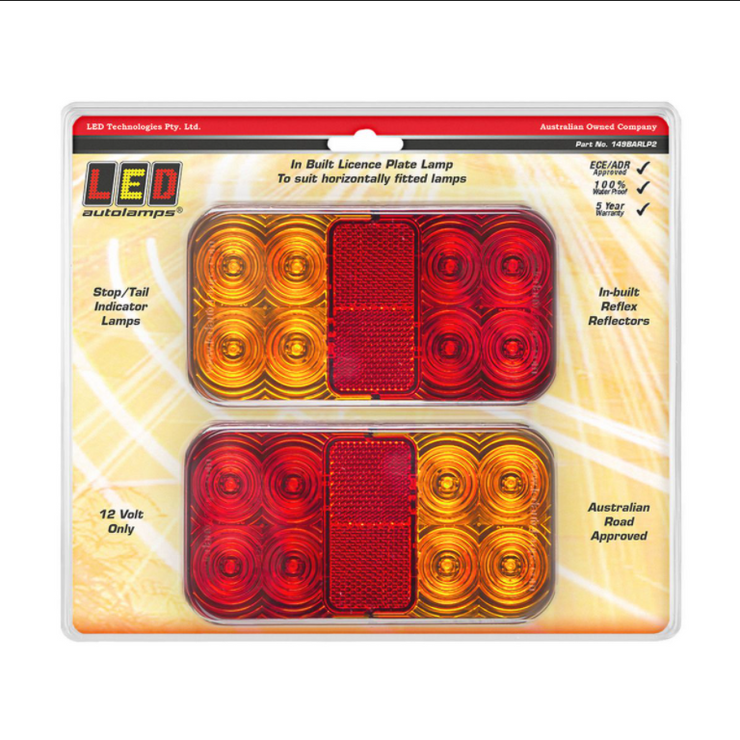

Stop / Tail / Indicator Lamps with Reflex Reflectors & Horizontally Mounted Lices Plate Lamp
IP67 100% Water proof
12 Volt with Horizontal Mount License Lamp
Twin Blister Left/Right Side
Overall Size
150mm x 80mm x 29mm
12 Volt Only
Plug in compatible cable kits and individual cables are available separately.
Fitting Instructions
Surface mount onto flat surface vertically with Indicator at top using bolts in back of lamp, run wire and plug through 10mm hole in fixing surface. Please refer to ADR 13/00 for mounting instructions.
Wire Color Code
Brown - Tail / License
Red - Stop
Yellow - Indicator
White - Earth
Being LED lights, they have much lower power consumption and a longer life than traditional non-leds. Available in a sealed, airtight and waterproof packaging for durability.
