Car Builders Stage 1 Sound Deadener is a vibration (sound) dampening mat. It consists of a butyl rubber noise absorption layer combined with an aluminium top layer.
Each box has 12 sheets, each sheet is 300x500mm and 2-2.2mm thick.
Our butyl based Sound Deadener does not require heating, does not smell, will not go brittle over time - which are all qualities of old style tar or bitumen sound deadening materials.
Our Sound Deadener does not run the risk of coming unstuck as there is no adhesive layer to fail - our pressure sensitive butyl rubber is sticky by itself.
Features/Advantages

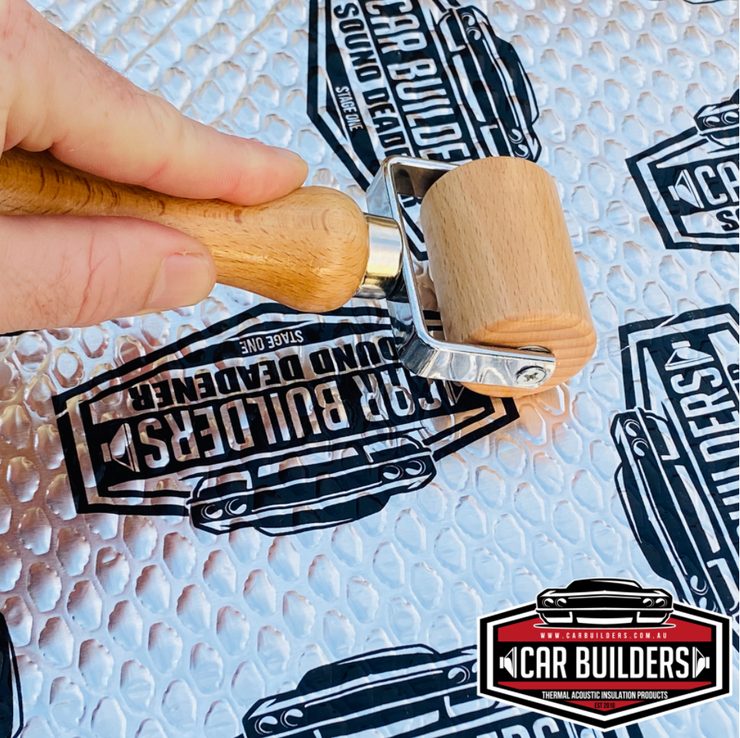

- Easy installation - just peel off the release liner and roll it on
- 100% waterproof - does not rot or deteriorate
- Cuts with scissors or a knife
- Reduces heat transfer
- Conforms and fuses easily to all types of sheet metal

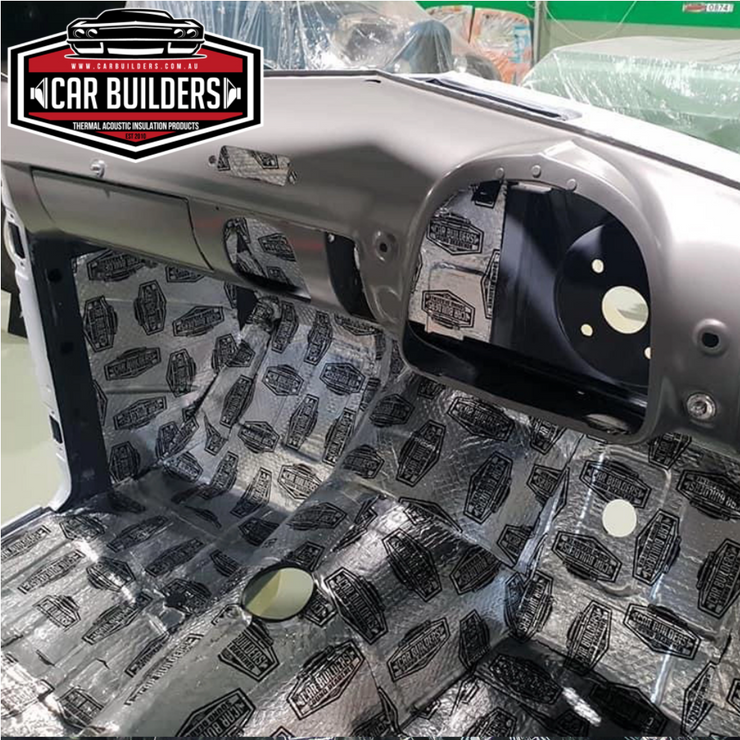

Applications

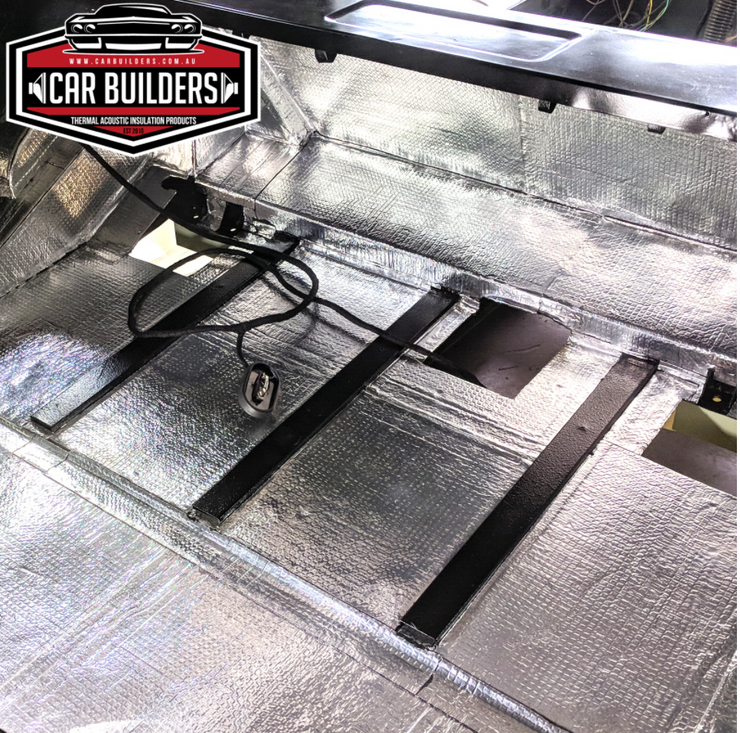

- Under carpets
- Roof skins
- Inside cavities
- 1/4 panels
- Doors
- Boots/trunks
-
Firewalls
Colors (product is exactly the same - only the print on the top changes)

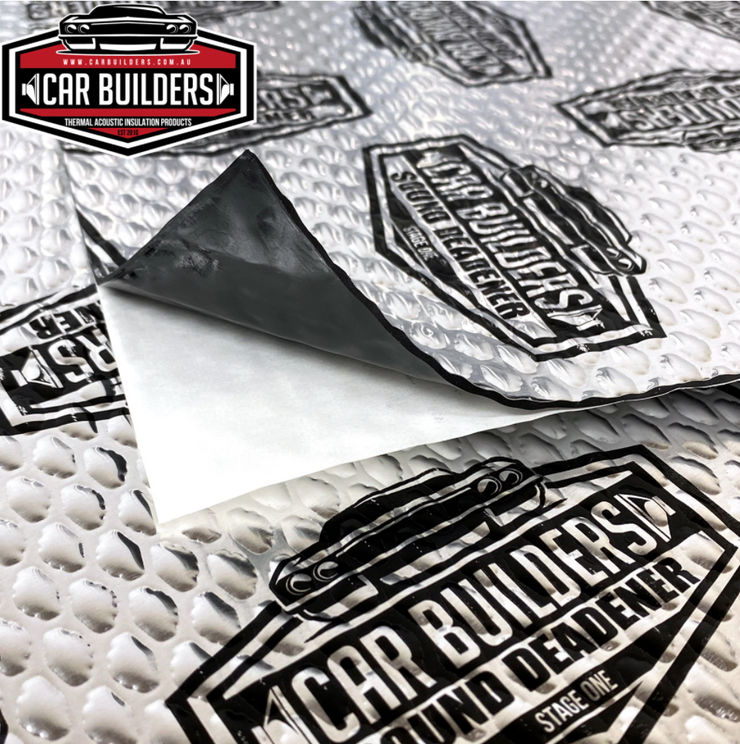

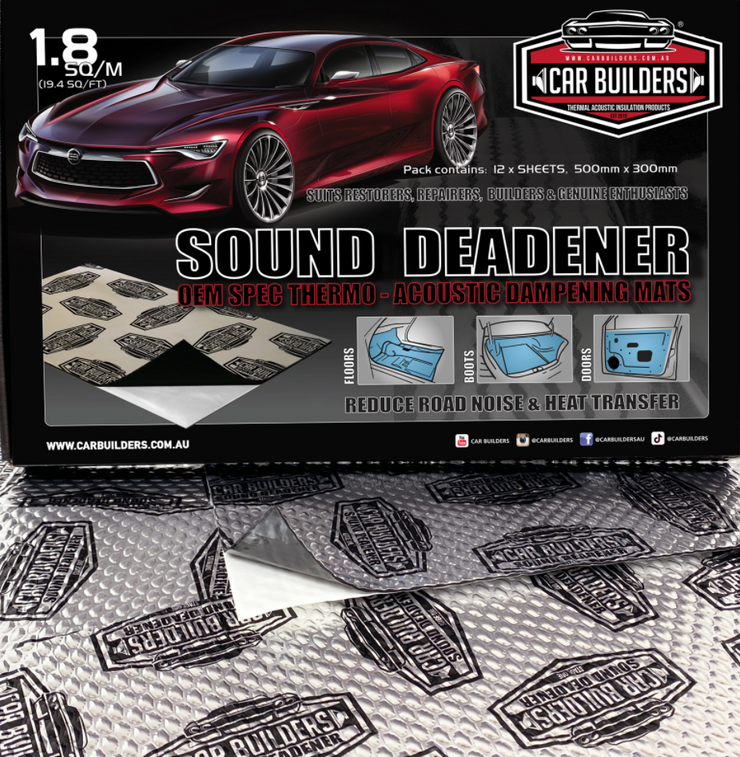

Silver - Silver with black logo

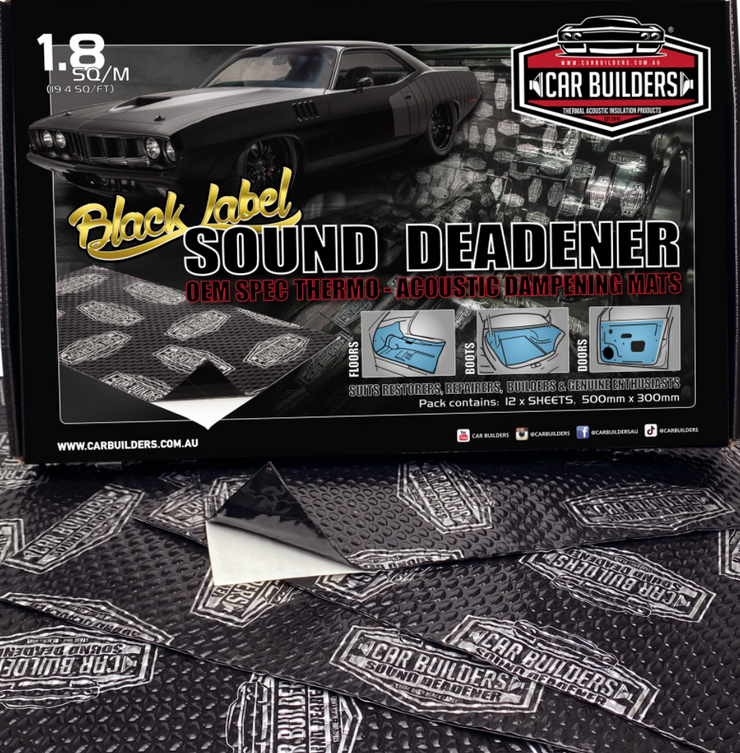

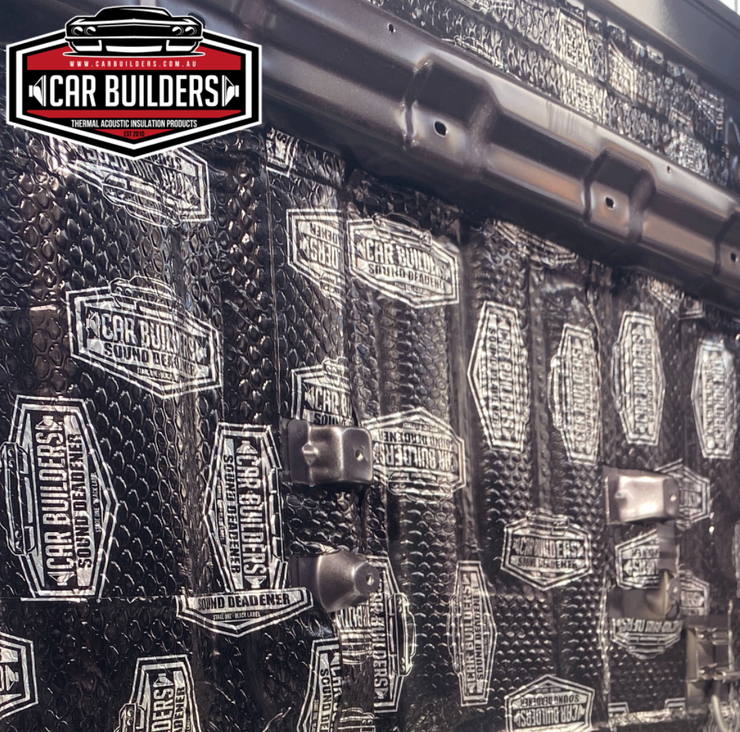

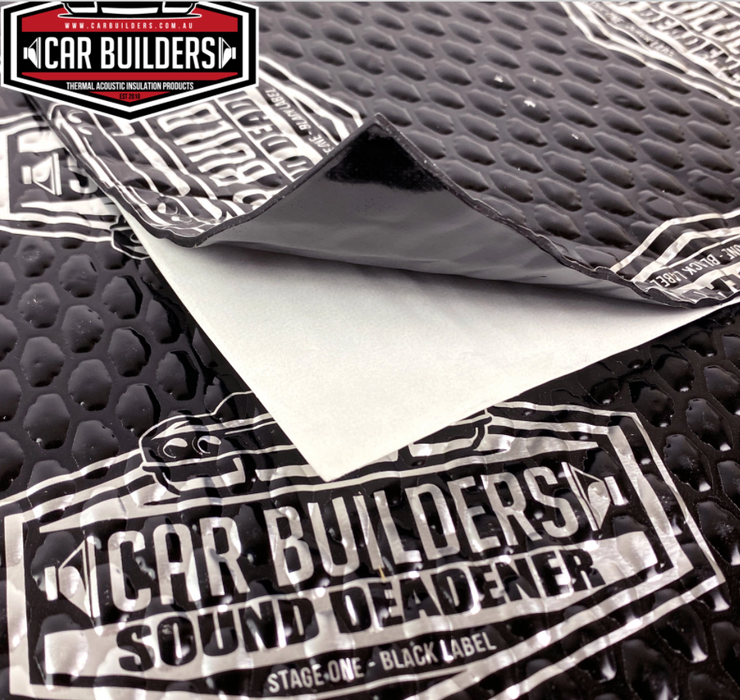

Black - Black with silver logo

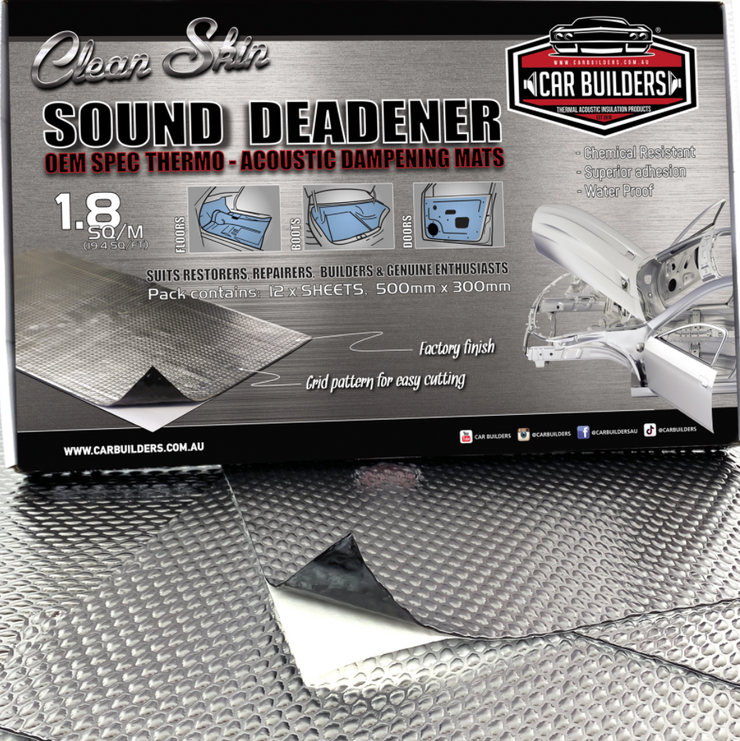

OEM Silver - Plain silver no logo

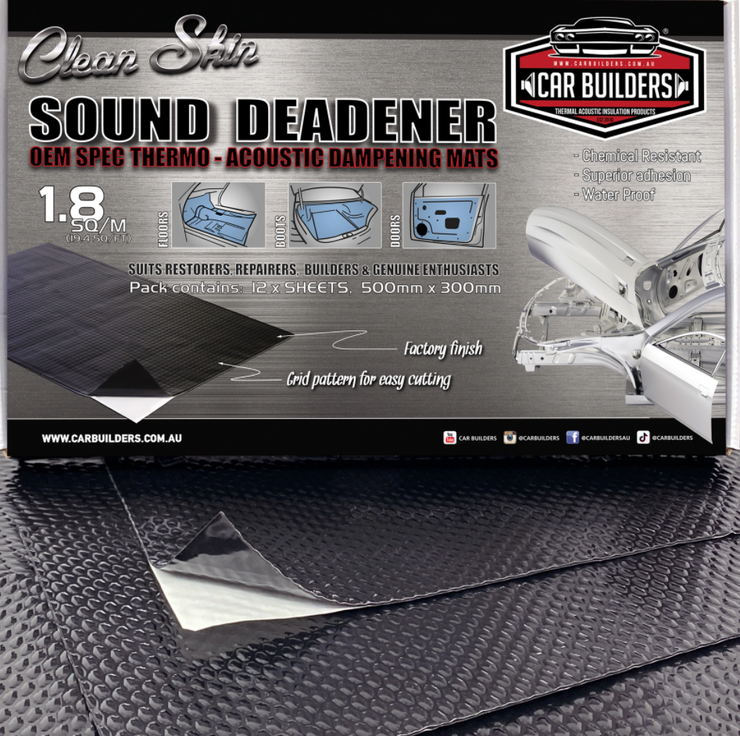

OEM Black - Plain black no logo
Sound Deadener comes packaged in 1.8sq/m (20sq/ft) boxes, see below
- 12 sheets per box
- 2-2.2mm thick
 |
Sheet sizes is: 300mm x 500mm |
 |
All our colour options are the exact same sound deadener - same price, same size, same butyl rubber. It is only the colours that is printed on the top that changes. Silver - Silver with black logo |
Appearance:
Black Butyl based core with silvery aluminium reinforced layer backed with white wax paper release liner.
Thickness:
2.0 - 2.2mm
Weight:
3.2kg/p sm
Acoustic Loss Factor:
(ASTM method E756 @ 200Hz, Temperature range -10°C to +60°C)
0.08 to 0.41
Recommended Install Temperature:
-10°C to +60°C
Resistance Temperature Range:
-40°C to +149°C
Chemical Resistance:
Resistant to water and mineral oils
Adhesive Peel Strength:
65N/cm on cold steel
Storage:
Product should be stored at room temperature for best application and should be stored horizontally in its package.
