SAAS Sports Seat Recliner

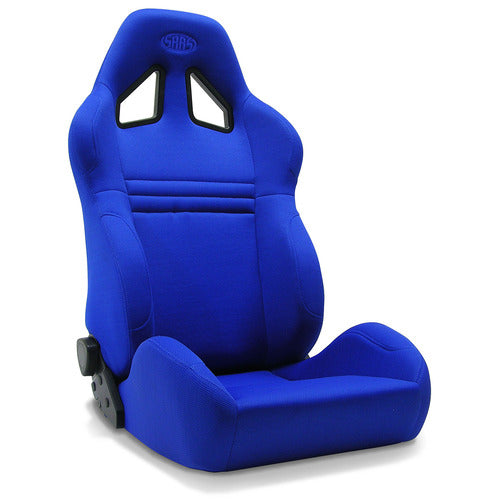

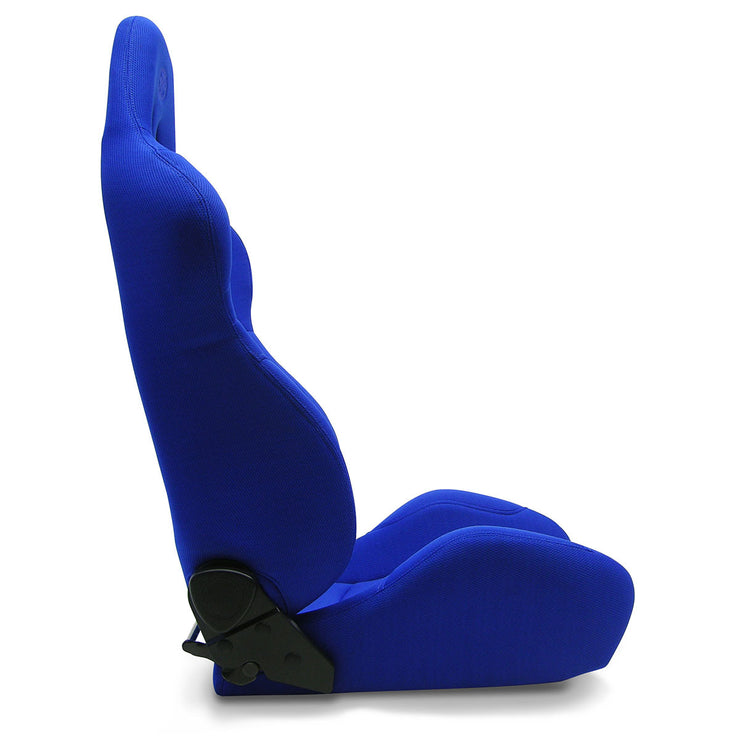

E1003 SAAS Kombat Seat Dual Recline Blue ADR Compliant
FEATURES:
- Colour: Blue
- Offers improved seat comfort and side support
- Dual Recline
- Wide harness slots compatible with 2" & 3" harness straps
- ADR Compliant (see Product Spec for details)
- Lifetime warranty on frame
- 12 month warranty on stitching and material
FITTING NOTES:
SAAS Seats are best fitted in conjunction with either of the following components:
- USS01 - A Universal Seat Slider is fitted to the base of the seat which is then attached to a custom seat subframe. This allows the seat to move back and forward.
- LBracket – These Bracket are designed for Fixed Back seats only. They attach your seat in a fixed position and are generally for motorsport applications.
The process of putting a new seat in your vehicle requires a custom subframe (providing an attachment point to the vehicle floor). We recommended you consult an approved engineer to fabricate mounting brackets - accredited engineers can also supply you with a seating label which reflects the new seating arrangements.
SPARES/SPECS
ADR COMPLIANCE | ADR 3/02 - Seat and Seat Anchorages 2005 |
SEAT AND ANCHORAGE LONGITUDINAL 20G TEST | ADR 3/02 5.5.1.1 & 5.5.2 |
REARWARD BACKREST TEST | ADR 3/02 5.5. 3 |
ENERGY DISSIPATION TEST | ADR 3/02 6.4 |
HEAD RESTRAINT TEST | ADR 22/00 |
