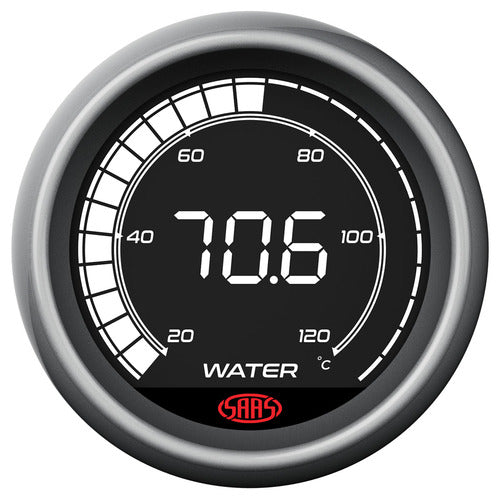

SG41220 Water Temp Gauge 20°-120° 52mm Muscle Digital Series
NOW FEATURING DIMMABLE BACKLIGHTING
The new for 2021 SAAS Muscle Digital specialty gauges give you digital readings with the added advantage of dimmable backlighting.
No moving components allows for a vibration proof environment making these gauges ideal for 4WD offroad and performance applications.
FEATURES:
- Easy to read combination LCD Digital readouts
- Includes all mounting hardware, bracket and sender(s)

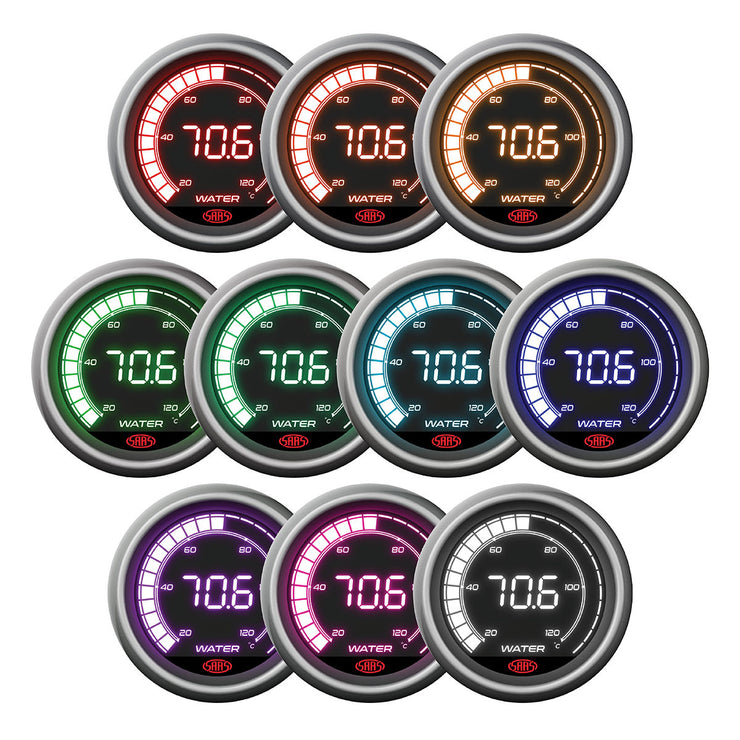

- Choice of 10 different LCD backlighting colours accessed via a remote switch
- 5 levels day / night dimming function
- Measure Water Temperature 20°-120°
- User pre-set warning functions
- Full range of replacement spare parts, senders, wiring looms available
SPARES/SPECS
| SERIES | Muscle Digital |
| DIAMETER | 52mm / 2" |
| RANGE | 20°-120° |
| LIGHTING | LED Multi-select 10 Colour |
| TYPE | Digital |
| BRACKET MOUNTING | SG21005 |
| GAUGE LINK CONNECTOR | SG9101 |
| PROGRAMMING BUTTON | SG4106 |
| SENDER WATER TEMP | SG91001 incl loom |
| SENDER THREAD | 1/8" NPT |
| SENDER ADAPTORS | Brass Adaptors |
| WIRING LOOM | SG9100 4 Pin Main |
| DOWNLOAD | Fitting Instructions |
